Best selling mdf laser cutting machine with 150W

FOB Reference Price:Get Latest Price
$3,500.00 - $5,980.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
DW-1325
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood, Crytal
Laser Type:
CO2
Cutting Area:
1300*2500mm
Cutting Speed:
0-60000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, PLT
Cutting Thickness:
0-25mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Ruida
Place of Origin:
Shandong, China
Brand Name:
Dowin
Certification:
CE, Other
Function:
Flat bed laser engraving cutting machine 1300*2500
Laser power:
100w/130w/150w
Working area:
1300*2500mm
Keyword:
Co2 Laser Cuting Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden box
Port
Shanghai,Qingdao,Tianjin,Shenzhen,Other Chinese sea port
Video Description
Product Description

Best selling acrylic mdf wood plywood paper leather fabric cloth rubber PVC co2 laser engraving and cutting machine.

Detailed Images

Hot sale acrylic mdf wood plywood paper leather fabric rubber co2 laser cutting and engraving machine with 130W 150W.

Double hood exhaust system

1) we use two sets 550W Exhaust fans to garantee all the smoke out

2)Special design to Put the exhaust fans and smoke pipes under the machine body to avoide noise.

Perfectly tidy power supply system
The power supply system of the whole machine is strictly in accordance with international standards. Different control power signal lines adopt separate routing design, and the whole is clean and tidy, avoiding electromagnetic interference between various types of signal lines.

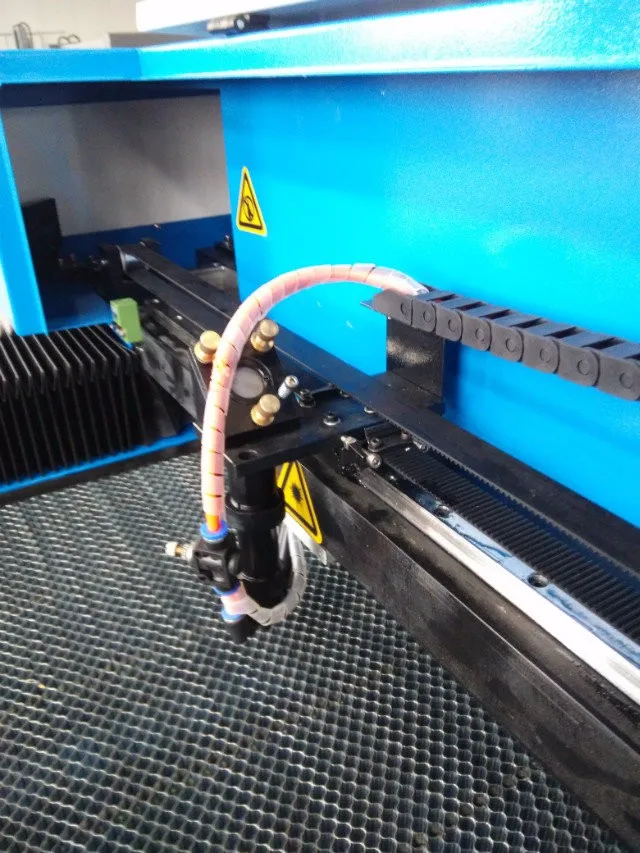

Adjustable laser head

The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves. The four fixing screws on the laser head freely adjust the reflector angle for easy focusing. The structure is simple, the operation is convenient, the laser device is stable, and the maintenance cost is low. The outer oxide film has a beautiful appearance and is durable and not deformed for a long time.

Reda Control System

Control panel in English, convenience of operation control. Has the function of re-carving after break point and power failure. It can adopt to flat or curved surface sheet cutting. Offline control system which can not only work without computer, but also connect to U disk, USB communication.

Leadshine stepper drivers

Adopting Leadshine stepper drivers.high accuracy and long life time.Can deal with various extreme working environment.

High precision drive motor..

The X/Y axis uses a high-precision belt-driven Leadshine motor to improve response speed and cutting engraving accuracy. The average small brand used by other manufacturers is more accurate and has a longer service life.

High-strength linear guide.

Taiwan Hiwin square guide rails are made of high-strength special steel to ensure that the laser machine does not deform continuously for a long time. Improve laser engraving and cutting accuracy and extend the working life of the machine.

Taiwan Hiwin Mute slider.

We use the Taiwan Hiwin Silent Slider to reduce the resistance of the laser head and the plotter during the movement and make the laser machine work more smoothly. It can adapt to the precise operation of heavy load and ensure the efficient and stable operation of the laser machine for a long time.

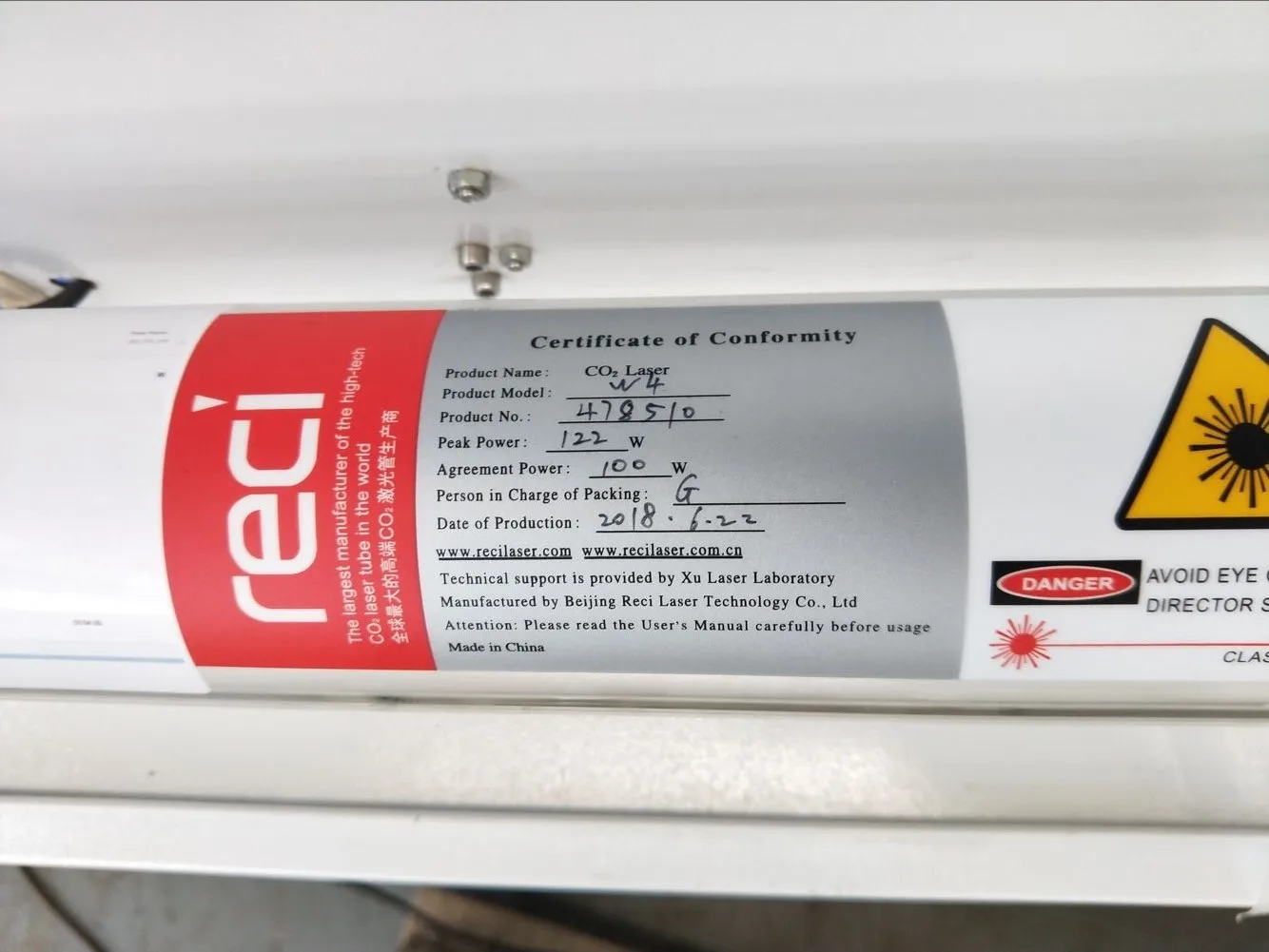

RECI foot power laser tube.

Adopt the new high-efficiency CO2 laser tube of RECI, the laser beam is more stable, and the laser management theory has a working life of more than 10,000 hours.

Adjustable mirror.

The adjustable frame is made of aluminum alloy.The reflection angle can be adjusted at will, the structure is simple, the operation is convenient, the laser device is stable, and the maintenance cost is low. The outer oxide film has the characteristics of beautiful appearance, high temperature resistance and high pressure resistance.

High-load mechanical mechanism.

Adopting seamless welding and body bending technology.More scientific design and high-strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.That can make sure the machines'stable and reliable working performance.

CW-5000 Water cooling control system

The laser tube working at high temperature can be cooled quickly to ensure that the laser tube has stable power and efficient and fast operation.Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be no laser,can protect the working life of laser tube effectively.

Application industry.

(1) Cutting:
acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA,PE,PP,composite material,PVC, etc.
(2) Engraving:
acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal, metal coating,paper,leather,rubber,fabric,cloth,plastic,PVC, etc.

Best selling mdf laser cutting machine with 150W forAcrylic.

Best selling mdf laser cutting machine with 150Wfor Wood,MDF.

Best selling mdf laser cutting machine with 150W for glass,stone.

Best selling mdf laser cutting machine with 150W for leather,cloth.

Best selling mdf laser cutting machine with 150W Working system.

Particularly designed and written for engraving and cutting,with high compatibility,support any computer operating system.Professional reader cutting & engraving software with powerful editing function,friendly interface,easy to installation and use which can support DXF/PLT/G-Code and many other graphs.

Our Service

Service for mdf laser cutting machine 1300*2500mm with 100W/130W/150W.

1) Machine has been adjusted and tested before delivery,we will take the testing videos for you to check the machine if asked.

2) 12 months guarantee of the whole machine
3) Main parts(excluding the consumables like lens and mirrors)shall be changed free of charge if there is any problem during the warranty period.
4) We will provide the consumable parts at an agency price when you need replaceme
5) 24 hours support by mobile,whatapp,wechat ,skype online service,we are always here support
6) Maintenance and technological support: Whole life.

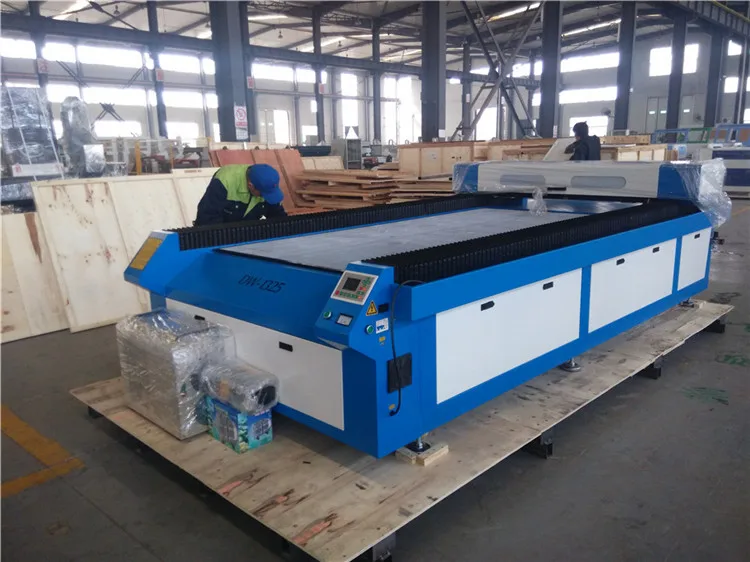

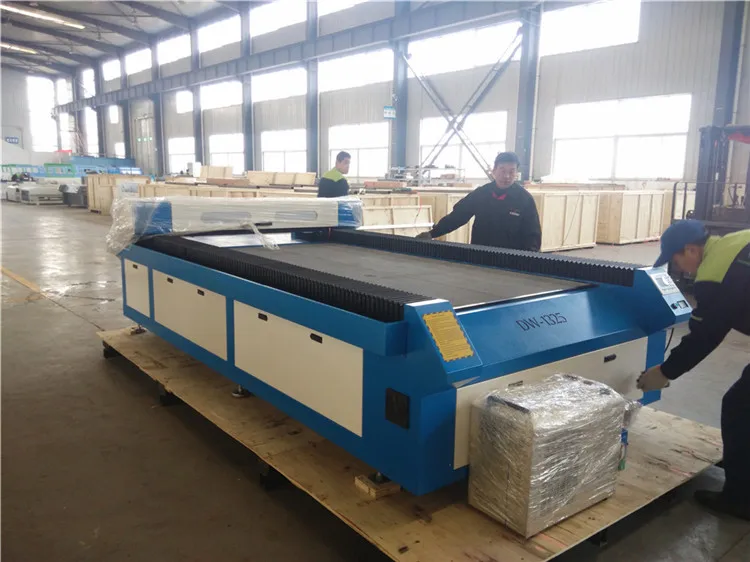

Packing & Delivery

Best selling mdf laser cutting machine with 150W packing.

1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.

Demision
Size
298 (L) * 218 (W) * 125 (H)cm
Net Weight
700 Kgs



Packaging Details
1) clean the machine first
2) Use foam to protect
3)Customers could tell us if need special packing ways.
Packaging
Size
400(L) * 218 (W) * 143 (H)cm
Weight
800 Kgs



Packaging Details
1)The normal package is wooden box(Size: L*W*H).
2)Use Square Iron pipes under and on the top of the crate to protect
3)Allow another laser machine to put on the top to save container shipping cost

    We work with dozens of international freight companies to build long-term relationships that reach all countries and regions around the world, and their experience in shipping will keep your laser machine's safe. We can also provide train transportation, especially in Russia, Ukraine and other landlocked countries.

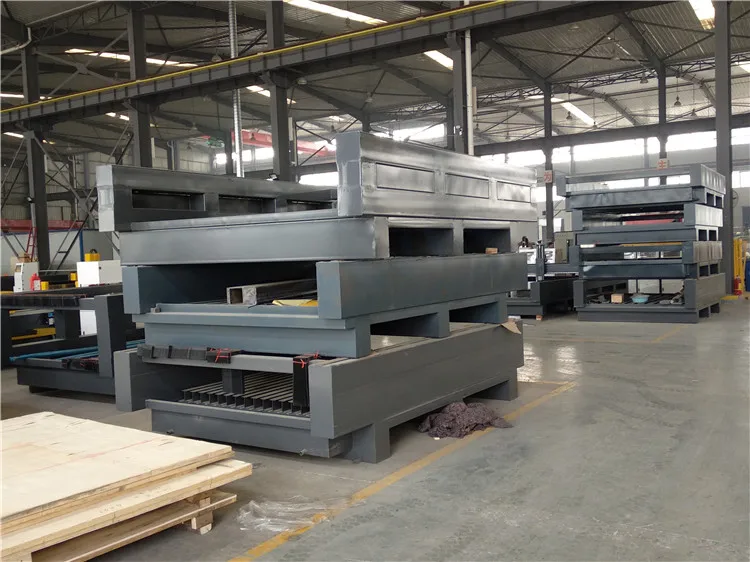

Our factory and quality control.

Dowin signs tech Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting machine, engraving machine and marking machine. All series machines are with One-three year's warranty. Also our service support various languages, like English, Spanish, Russian,and so on. Meanwhile, customized equipment are available according to different requirements.Within the laser engraving and cutting field, Dowinlaser has passed CE and FDA qualifications.Which assures high-efficient production and products' reliability. After years of hard work, Dowinlaser's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc..

Qualification honor.

Hot sale acrylic mdf wood plywood paper leather fabric rubber co2 laser cutting and engraving machine with 130W 150W.
FAQ

Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Does the laser machine can connected to a laptop or desktop computer to work?
A: Yes, the machine have professional port to connect computer and also can connected with other machines. It supports Windows 2000, Windows XP, Win 7,Win 10 and other operating systems
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 50W , 60W or 80W.
Q: What are the applications for laser tubes with different powers? For example, what is the maximum thickness of Acrylic that laser machine can cut?

40W laser tube                                    5mm     Acrylic
50W laser tube                                    6mm    Acrylic
60W laser tube                                   10mm   Acrylic
80W laser tube                                   15mm   Acrylic
100W laser tube                                 18mm   Acrylic
130W laser tube                                 20mm   Acrylic
150W laser tube                                 25mm   Acrylic
Q: In general, how long is the service life of a laser tube?
A: Generally, a laser tube's service life can reach 3500 hours to 10000 hours depending on the specific usage. For example, if it works 8 hours per day, the detailed data is as follows:
1. If you set the power at 20-30% of the total power, the service life is about 1-2 years.
2. If you set the power at 40-50% of the total power, the service life is about 1 year.
3. If you set the power at 70-80% of the total power, the service life is about 6-8 months.
Q: How can I tell the power of a laser tube has been exhausted?
A: The beam color of a new laser tube in operation is purple. When the power is gradually depleted, the color will become white.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
