80w 100w co2 ccd camera laser cutting jigsaw puzzle machine laser engraving machine air filter price

FOB Reference Price:Get Latest Price
$2,800.00 - $3,800.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
100W/130W/150W
Model Number:
DW-1390
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2
Engraving Speed:
0-60000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Engraving
Engraving Area:
1300*900mm
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Henan, China
Brand Name:
DOWIN
Dimension(L*W*H):
196*145*120cm
Certification:
CE
Warranty:
1 Year
Laser tube:
CO2 Laser Tube
Laser power:
100W
Name:

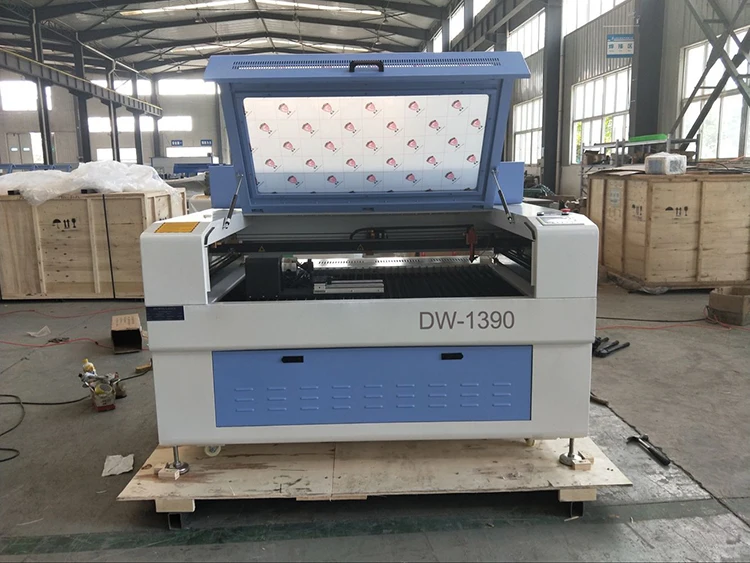

1390 Laser Engraving Machine
Keywords:
1390 Laser Engraving Cutting Machine
Function:
Cutting Engraving Non-metal Materials
Type:
Water Cooling CO2 Laser Engraving Machines
Model:
DW-1390
Software:
RUIDA-6442S
Color:
Blue + White
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
laser engraving and cutting machine wooden box
Port
Qingdao, Shanghai, Beijing, Tianjin, other
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 To be negotiated
Video Description
Product Description

80w 100w co2 ccd camera laser cutting jigsaw puzzle machine laser engraving machine air filter price.

Detailed Images

80w 100w co2 ccd camera laser cutting jigsaw puzzle machine laser engraving machine air filter price.



Best quality laser head with Red light positioning system realizes the exact position without laser.




1.Ruida Offline control system which can not only work without computer, but also connect to U disk, USB communication.

2.Control panel in English, convenience of operation control.




1.Adopting high-torque Leadshine stepper motor and drivers.

2.Perfect wires easy to check and Anti-interference

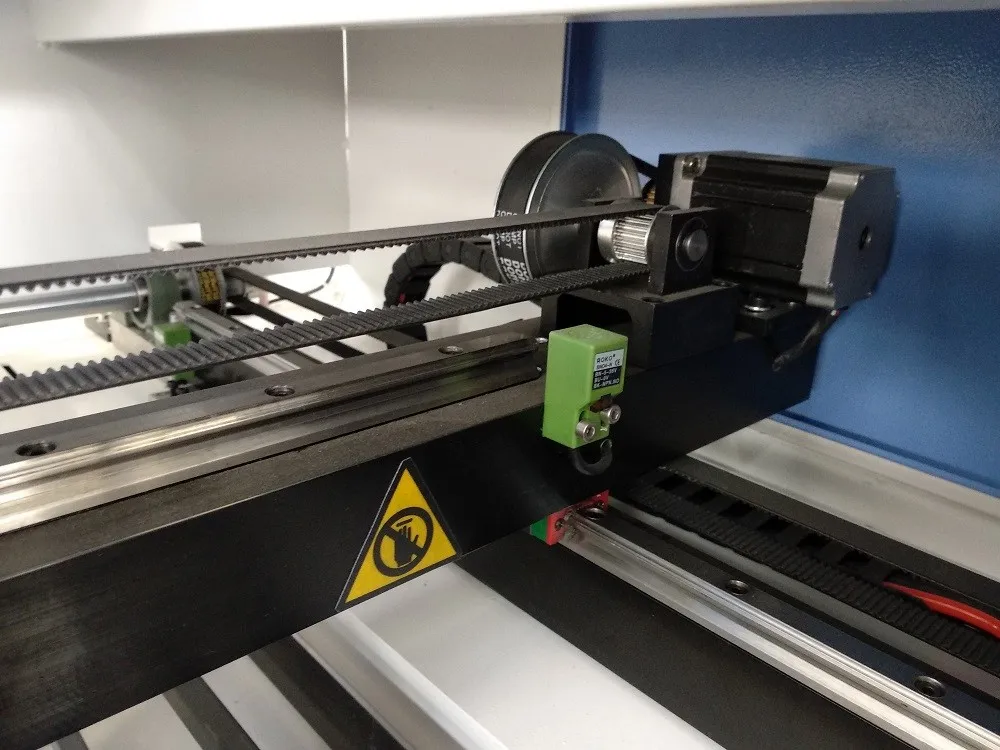

1.X,Y axis adopted high precision and high speed belt transmission from shanghai
2. Square guide rail from Taiwan,high accuracy and long life time




Capacity limited sensor ,longer life,more stable and higher precision compare with other mechanical limited sensor




Special "front" and "back" open design suitable for the super-length material process.



The best quality honey table for small part engraving and soft material cutting ,like Fabric,clothes..


Knife cutting table as the other option.also could chose double working table,just need to tell us in advance.



CW-5000 industry chiller with compressor,Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.

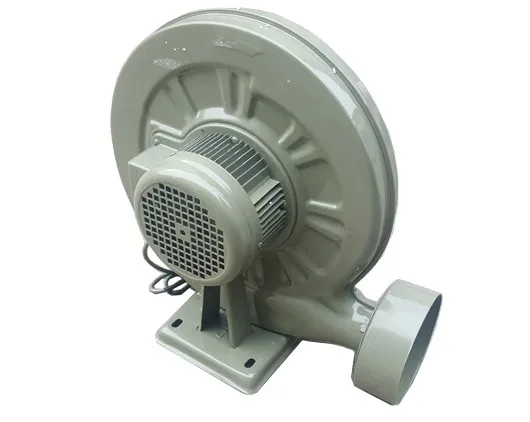

Big power exhaust fan to below the smoke back to the behind pipe, this could protect laser machine from damaged by fumes.




ACO brand Air pump connect with the air pipes on laser cutting head to Prevent cutting flame and clean Lens in time.



Intelligent Terminal RD-WIFI
It is a wireless WIFI converter, based on this terminal, user can cooperate with RUIDA motion controller to establish the wireless control LAN based on WIFI, and to get rid of the wired networking connection absolutely, which can reduce the user cost and increase flexibility.


Ruida Laserwork System ,easy to operate.

Particularly designed and written for engraving and cutting,with high compatibility,support any computer operating system.Professional reader cutting & engraving software with powerful editing function,friendly interface,easy to installation and use which can support DXF/PLT/G-Code and many other graphs.
Processing area
1300*900mm
Laser tube
100W RECI tube
Engraving speed
0-60000mm/min
Cutting speed
0-10000mm/min
Resolution ratio
<0.01mm
Location precision
<0.01mm
Voltage
110V±10%/ 220V±10% ,50HZ ~60HZ
Cutting thickness
Max 25mm Acrylic
Minimum character
Letter 1.0 x 1.0mm
Support graphic format
JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Laser tube's life
10000 hours
Operating temperature
5%-95% Free of condensed water
Interface
USB
Control system
RUIDA-6442
Electrical up-down system
Option
Rotary platform
Option
Sample

80w 100w co2 ccd camera laser cutting jigsaw puzzle machine laser engraving machine air filter price.

(1) Cutting:
acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA,PE,PP,composite material,PVC, etc.
(2) Engraving:
acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal,metal coating,paper,leather,rubber,fabric,cloth,plastic ,PVC, etc.
Advertising industry: trophies, authorization card, dual color plates, acrylic etc.,processing.
Office Industry: menus, recipes, tender, invitations, personalized business cards etc., processing.
Packaging Industry: wine box, tea packing box etc., processing.
Gift Industry: glass cup, bamboo etc., crafts Processing.
Decoration Industry: grilles, tiles etc., engraving and cutting.
Printing Industry: rubber, printed version.

CNC co2 laser engraving and cutting 1390 for wood.

CNC co2 laser engraving and cutting 1390 for acrylic,rubber.

CNC co2 laser engraving and cutting 1390 for stone,glass.

CNC co2 laser engraving and cutting 1390 for leather,cloth.

Packing & Delivery

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity.

 We can package according to your requests.

We work with dozens of international freight companies to build long-term relationships that reach all countries and regions around the world, and their experience in shipping will keep your machines safe. We can also provide train transportation, especially in Russia, Ukraine and other landlocked countries.
FAQ

Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.

Q: How to distinguish laser tubes with different powers and applications?
1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W,50W , 60W or 80W.
Q: What are the applications for laser tubes with different powers? For example, what is the maximum thickness of Acrylic that laser machine can cut?
40W laser tube 5mm Acrylic            50W laser tube 6mm Acrylic
60W laser tube 10mm Acrylic          80W laser tube 15mm Acrylic
100W laser tube 18mm Acrylic       130W laser tube 20mm Acrylic
150W laser tube 25mm Acrylic
We have also document telling what cutting /engraving speed for different materials.
Q: In general, how long is the service life of a laser tube?
A: Generally, a laser tube's service life can reach 5000 hours to 10000 hours depending on the specific usage. For example, if it works 8 hours per day, the detailed data is as follows:
1. If you set the power at 20-30% of the total power, the service life is about 1-2 years.
2. If you set the power at 40-50% of the total power, the service life is about 1 year.
3. If you set the power at 70-80% of the total power, the service life is about 6-8 months.

Q: How can I tell the power of a laser tube has been exhausted?

A: The beam color of a new laser tube in operation is purple. When the power is gradually depleted, the color will become white.

Q: Is it better to increase blow to improve laser processing performance?

A: For some thick materials, it works. But, when carving some other materials, you need to blow less.Is
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
Q: What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free, if the problems are caused by quality problem under "normal use".
Q: How's the payment? How long is the delivery time?
Western Union(WU),Telegraphic Transfer(T/T) to our official company bank account or pay Via alibbaba trade assurance order.
For standard machines, it would be 3-5days; For non-standard machines and customized machines according to client's specific requirements, it would be 7-15 days.

Our service

Dowin signs tech Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting, engraving , marking and welding. All series machines are with One-three year's warranty. Within the laser engraving and cutting field, Dowin has passed CE and FDA qualifications. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.
Quality and credit goes all the way. Dowin a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

Qualification Honor:

Services:

1.Within 7 days since your local customs clearance: if the cnc co2 laser cutting and engraving machine's any parts has any problems,we will change it free.
2.Exceed 7 days since your local customs clearance but within warranty period: if the cnc co2 laser cutting and engraving machine partshave any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3.Exceed one year warranty period: if the cnc co2 laser cutting and engraving machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4.We offer 24 hours technical support by call, email.
5.Our technician can give you remote guide online(Skype / MSN/What's app/viber/Tel/Etc) if you have any question.
6.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
7.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
