CO2 laser coconut engraving and cutting machine with 80W 100W 130W

FOB Reference Price:Get Latest Price
$2,500.00 - $3,500.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 3 Sets)
Customized packaging (Min. Order: 3 Sets)

More

Graphic customization (Min. Order: 3 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Dowin
Model Number:
DW-1390
Type:
laser engraving cutting machine, Water Cooling CO2 Laser Engraving Machines
Voltage:
220V
Weight:
320kg
Dimension(L*W*H):
203*155*147cm
Certification:
CE/FDA/CCC
Year:
2019.04
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Product name:
co2 laser coconut engraving and cutting machine with 80W 100W 130W
Laser tube:
CO2 Laser Tube
Laser power:
100W
Name:
coconut laser engraving cutting machine
Keywords:
coconut cutting machine
Function:
Cutting Engraving Non-metal Materials
Model:
DW-1390
Software:
RUIDA-6442S
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
laser engraving and cutting machine wooden box
Port
Qingdao, Shanghai, Beijing, Tianjin, other
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Video Description
Product Description

Co2 laser coconut cutting and engraving machine with 80W 100W 130W.

Detailed Images

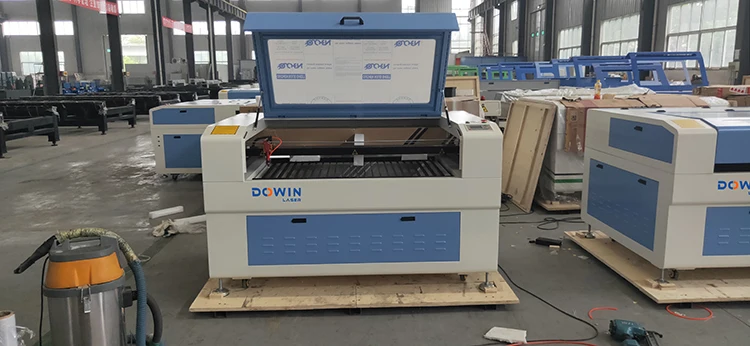

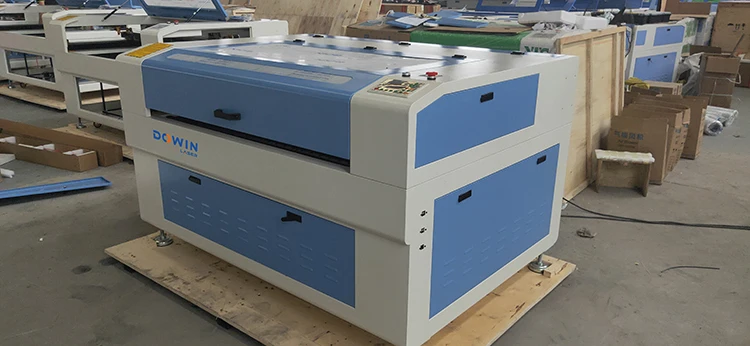

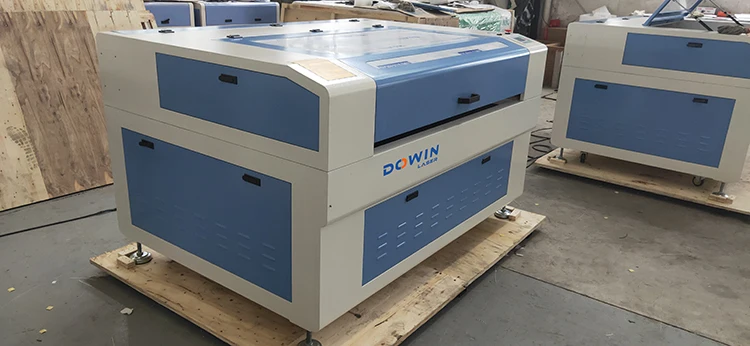

CO2 laser coconut cutting and engraving machine with 80W 100W 130W detailed images.

Best quality laser head with Red light positioning system realizes the exact position without laser.

The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves. The four fixing screws on the laser head freely adjust the reflector angle for easy focusing. The structure is simple, the operation is convenient, the laser device is stable, and the maintenance cost is low. The outer oxide film has a beautiful appearance and is durable and not deformed for a long time.

1.Ruida Offline control system which can not only work without computer, but also connect to U disk, USB communication.

2.Control panel in English, convenience of operation control.

1.Adopting high-torque Leadshine stepper motor and drivers.

2.The power supply system of the whole machine is strictly in accordance with international standards. Different control power signal lines adopt separate routing design, and the whole is clean and tidy, avoiding electromagnetic interference between various types of signal lines.

1.X,Y axis adopted high precision and high speed  belt transmission from shanghai.

2. Square guide rail from Taiwan,high accuracy and long life time.


Capacity limited sensor ,longer life,more stable and higher precision compare with other mechanical limited sensor.


Special "front" and "back" open design suitable for the super-length material process.


The best quality honey table for small part engraving and soft material cutting ,like Fabric,clothes,leather,wood,mdf,coconut...

Knife cutting table as the other option.also could chose double working table,just need to tell us in advance.


CW-5000 industry chiller with compressor,Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.


Big power exhaust fan to below the smoke back to the behind pipe, this could protect laser machine from damaged by fumes

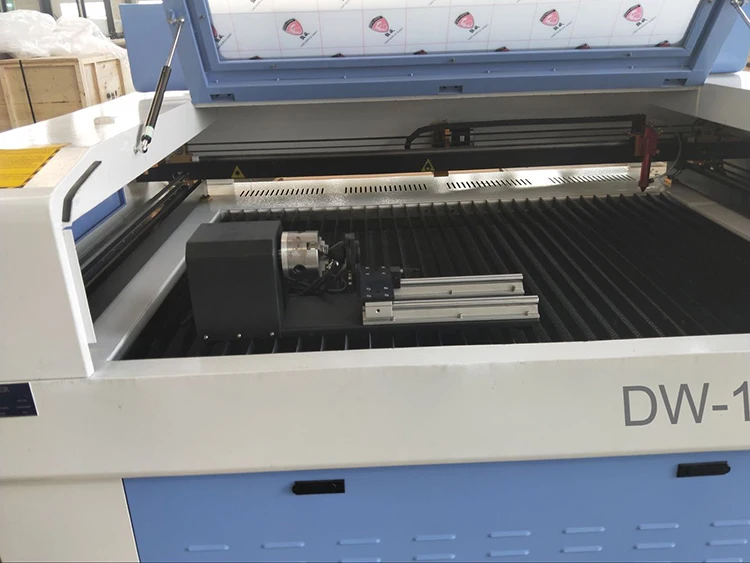

Optional 3D engraving system.

which can convert Y-axis and rotary axis by machine button switch, can engrave any irregular objects, such as spherical objects, triangular objects, cylindrical objects...


For special processing materials, you can link the WIFI signal and control the laser machine through the computer. You can watch the laser machine through the computer while drinking coffee in the office.


co2 coconut laser cutting machine work System

Particularly designed and written for engraving and cutting,with high compatibility,support any computer operating system.Professional reader cutting & engraving software with powerful editing function,friendly interface,easy to installation and use which can support DXF/PLT/G-Code and many other graphs.

DW-1390 coconut laser cutting machine parameters:

Processing area
1300*900mm
Laser tube
100W RECI tube
Engraving speed
0-60000mm/min
Cutting speed
0-10000mm/min
Resolution ratio
<0.01mm
Location precision
<0.01mm
Voltage
110V±10%/ 220V±10% ,50HZ ~60HZ
Cutting thickness
Max 25mm Acrylic
Minimum character
Letter 1.0 x 1.0mm
Support graphic format
JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Laser tube's life
10000 hours
Operating temperature
5%-95% Free of condensed water
Interface
USB
Control system
RUIDA-6442
Electrical up-down system
Option
Rotary platform
Option
Sample

80W 100W 130W 3d CO2 laser coconut engraving cutting machine 1390.

CO2 laser engraving and cutting machine can be applied to many nonmetal materials.

(1) Cutting:
coconut,acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES, PC,PA,PE,PP,composite material,PVC, etc.
(2) Engraving:
coconut,acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal,metal,coating,paper,leather,rubber,fabric,cloth, plastic ,PVC, etc.
Packing & Delivery

Laser coconut engraving cutting machine packing and delivery.

1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.

We can package according to your requests.

We work with dozens of international freight companies to build long-term relationships that reach all countries and regions around the world, and their experience in shipping will keep your laser cutting machine's safe. We can also provide train transportation, especially in Russia, Ukraine and other landlocked countries.

FAQ

Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: What kind of graphic format does it support?

A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.

Q: How to distinguish laser tubes with different powers and applications?
1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W,50W , 60W or 80W.
Q: What are the applications for laser tubes with different powers? For example, what is the maximum thickness of Acrylic that laser machine can cut?
40W   laser tube 5mm   Coconut            50W   laser tube 6mm   Coconut
60W   laser tube 10mm Coconut            80W   laser tube 15mm Coconut
100W laser tube 18mm Coconut           130W laser tube 20mm  Coconut
150W laser tube 25mm Coconut
We have also document telling what cutting /engraving speed for different materials.
Q: In general, how long is the service life of a laser tube?
A: Generally, a laser tube's service life can reach 5000 hours to 10000 hours depending on the specific usage. For example, if it works 8 hours per day, the detailed data is as follows:
1. If you set the power at 20-30% of the total power, the service life is about 1-2 years.
2. If you set the power at 40-50% of the total power, the service life is about 1 year.
3. If you set the power at 70-80% of the total power, the service life is about 6-8 months.
Q: How can I tell the power of a laser tube has been exhausted?

A: The beam color of a new laser tube in operation is purple. When the power is gradually depleted, the color will become white.
Q: Is it better to increase blow to improve laser processing performance?

A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
Q: What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free, if the problems are caused by quality problem under "normal use".
Q: How's the payment? How long is the delivery time?
Western Union(WU),Telegraphic Transfer(T/T) to our official company bank account or pay Via alibbaba trade assurance order.
For standard machines, it would be 3-5days; For non-standard machines and customized machines according to client's specific requirements, it would be 7-15 days.
