ATC tools changing CNC Router wood cutting engraving machine 9Kw

FOB Reference Price:Get Latest Price
$6,000.00 - $23,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
DW-T5
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$50.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Henan, China
Brand Name:
DOWIN
Voltage:
AC380V/50/60Hz,3PH
Dimension(L*W*H):
3710*2250*2300mm
Certification:
CE ISO FDA
Weight (KG):
3000
Warranty:
2 years
Key Selling Points:
Long Service Life
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Printing Shops, Construction works , Advertising Company
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts
Control system:
NC Studio
Spindle:
9.0KW Air Cooling Spindle
Motor:
Servo Motor
Product name:
ATC CNC Wood Working Machine
Weight:
1800KG
Power(W):
9.0KW
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Sea worthy wooden package
Port
Qingdao/shanghai/Ningbo/ect
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Welcome to our factory learn more about CNC furniture manufacturing machines any time.

                           Description
                                            Parameter
Dimension & Working Area
3710*2250*2300mm
1220*2440*200mm
X,Y,Z Traveling Positioning Accuracy
±0.03mm
X,Y,Z Repositioning Accuracy
±0.03mm
Table Surface
Vacuum and T-slot working table
Vacuum pump
Yes
7.5Kw vacuum pump
X, Y Structure
Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
Spindle Power
9.0kw JST ATC air cooling spindle
Spindle Speed
0-24000RPM
ATC number
12 pieces auto changing tools
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Drive Motors
1.5Kw high precision servo motor
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
Command Language
G Code
Operating System
NC Studio control system
Inverter
Fuling DZB inverter
Dust collector
Yes
Two bags dust collector
Oil lubrication system
Yes
X,Y Resolution
<0.01mm
Software Compatibility
Alphacam/Type3/UcancameV9 /Artcam
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
Total Power Consumption
(With Spindle) 15Kw
Optional Parts
1.Spindle : 9.0kw HSD ATC air cooling spindle

2. Driver motor :Yaskawa servo motor)

3.Inverter: Taiwan DELTA

4. Control System :Taiwan SYNTEC/EtherCAT

Main Features

* Heavy duty machine body, welding by thick steel tube.High-performance all-round machinery with extraordinary value, but at a very economical price. With linear tool hanger, constructed with world-class components, consistent high performance.

* Featuring 9.0KW spindle motor and high frequency air-cooling electronic spindle and servo system .

* Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably

accommodating all sizes of work piece.

*NC studio controller(Option Taiwan SYNTEC)-enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.

Detailed Images





Heavy duty machine body, welding by thick steel tube

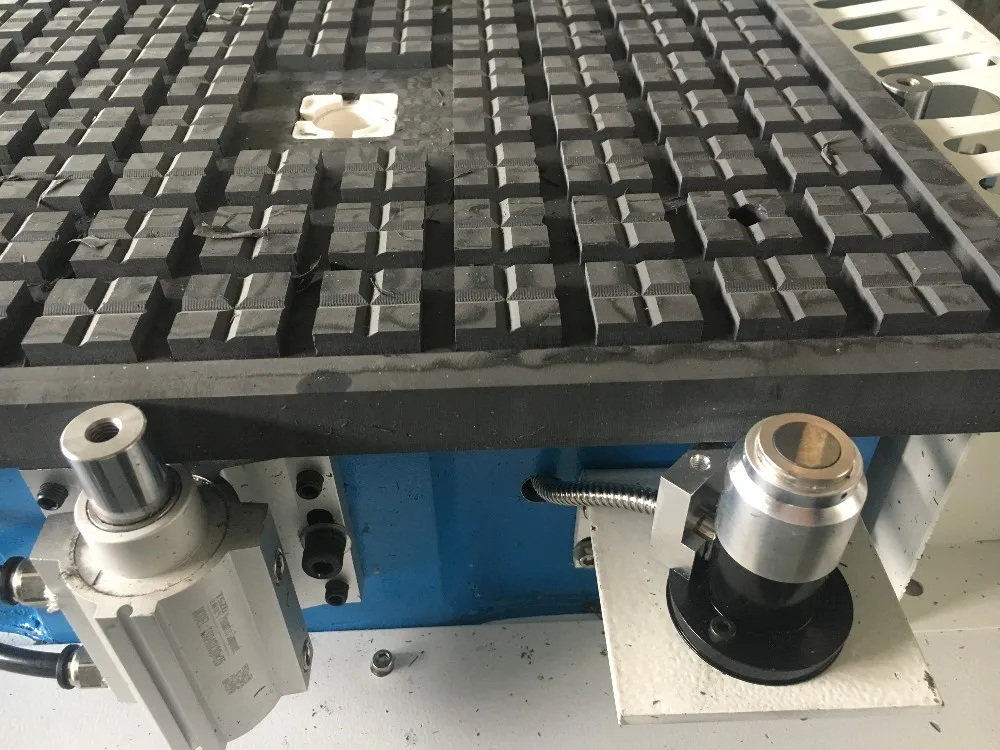

Offer Zone adjustable Vacuum table with 7.5Kw strong power Pump,The work table is international leading vacuum adsorption featured.It can adsorb different size materials closely.


Imported high-precision ball screw which moving smoothly, to ensure the machine's high precision.

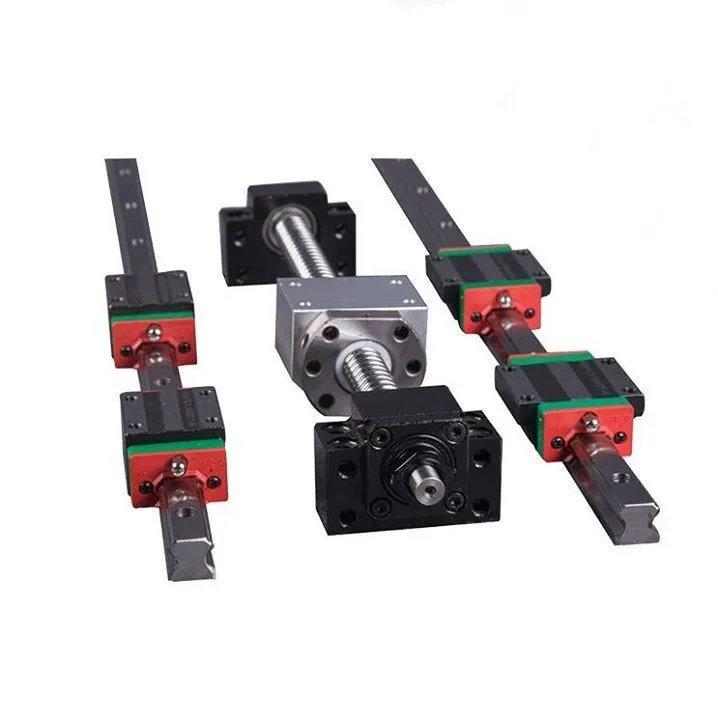

Linear Square Guide Rails from Germerny




Integrated Z ball screw system make sure high precision in time long run


Tool setting gauge to set Tool position easily and correctly


Top brands 9KW servo motor driver with air cooling system,high precision and fast speed

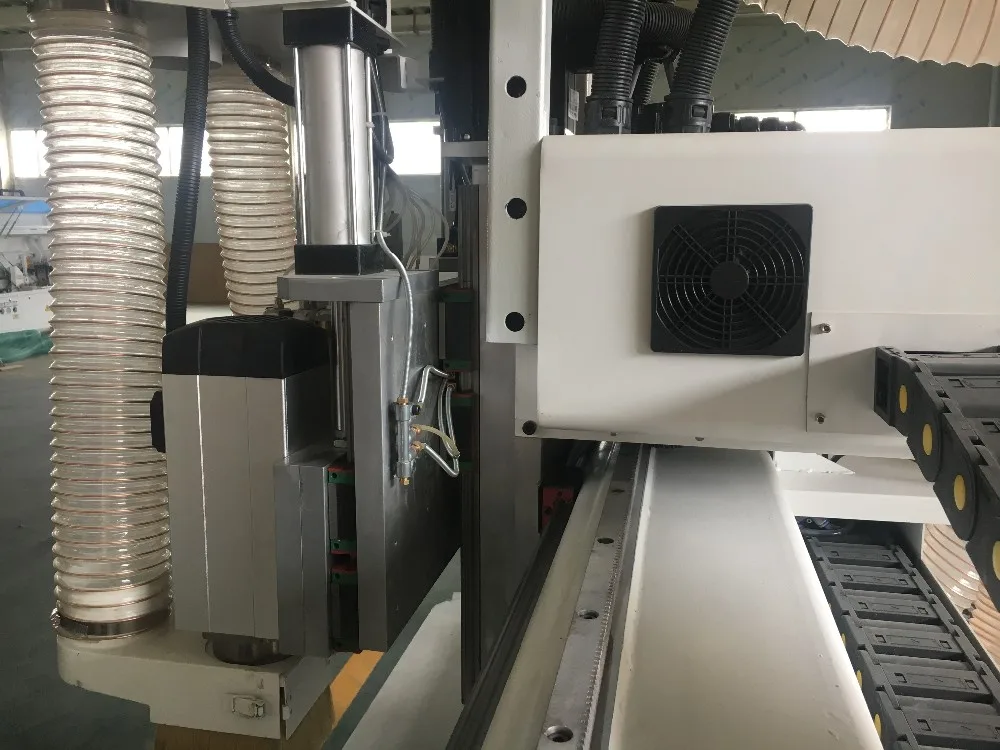

Moving head with exhaust fans to cool down it in time,Guarantee long time working


Straight line Auto changing tool moving with Gantry ,make it fastest to change tool ,only need 3 seconds.most other brand cnc router tools installed at the back of machine,it is a waste of time to change each tool


Electric Cabinet

All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.

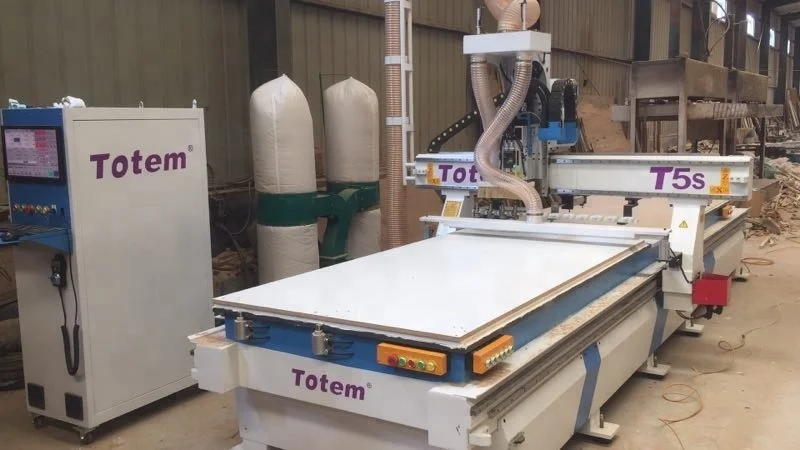

Double bags dust collector to clean dust in time

Application

Main applications of cnc wood machine :

1.Furniture industry: wooden doors,cabinet doors,board,office,solid wood furniture.

2.Other wood products industry: speakers,game consoles cabinets,computer tables,sewing machine table,musical instruments,etc.

3.Board processing industry: insulation piece,plastic chemical products;PCB;fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures's milling process

4..Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo's processing.

Related Products

Mini 3040 cnc engraving machine

DW-1325 laser cutting machine

DW-1530F metal laser cutting machine

Our Service

After service and Guaranty of our factory:

1. 2 years quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. 18 hours on line service and email each day, free technical support.

5. Machine has been adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.

6. provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.

7. if you have any problem during your use.you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and skype/whatsapp/facebook with can till all of your problems solved.

Certifications
Packing & Delivery

Packaging Details:

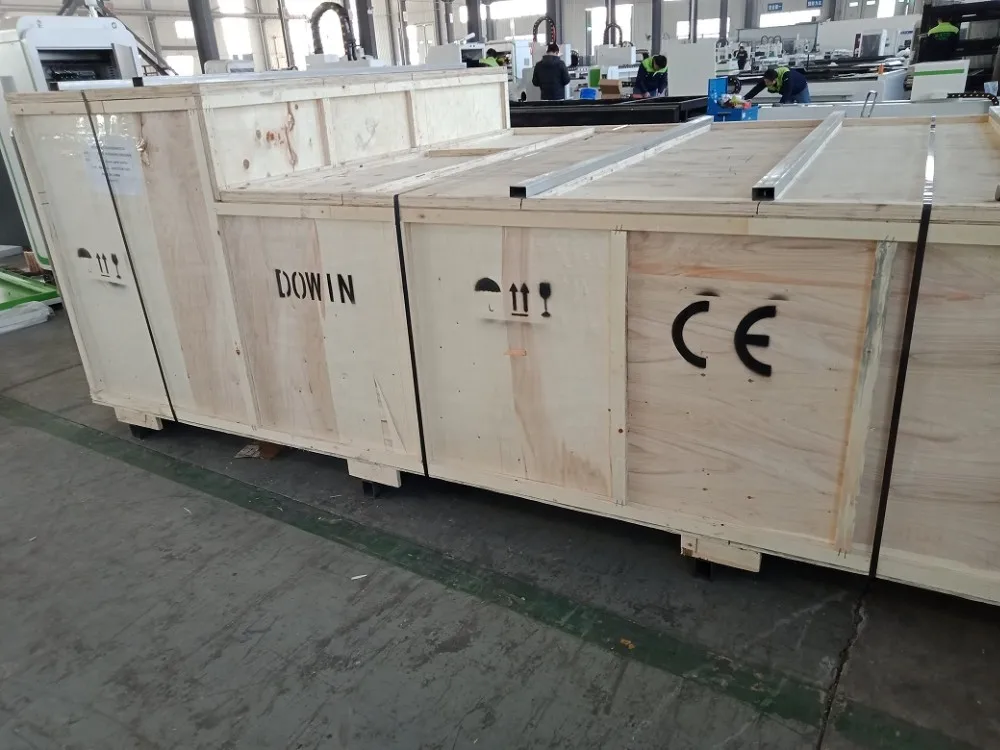

1. Outside package: Standard marine export plywood case.
