100w Co2 laser cutting machine for plastic sheet card leather wood felt clothes 6090

FOB Reference Price:Get Latest Price
$1,399.00 - $2,899.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DW-6090
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2
Engraving Speed:
0-60000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP
Application:
Laser Engraving
Engraving Area:
600*900mm
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Shandong, China
Brand Name:
DOWIN
Dimension(L*W*H):
1650*1250*1470mm
Certification:
CE
Warranty:
1 Year
Product name:
Co2 laser cutting machine for plastic sheet card
Laser tube:
CO2 Laser Tube
Keywords:
Laser Engraving Cutting Machine
Power supply:
220V±10% /50HZ , 110V±10%//60HZ
Function:
Cutting Engraving Non-metal Materials
Model:
DW-6090
Laser power:
80w/100w
Type:
Water Cooling CO2 Laser Engraving Machines
Software:
RUIDA
Supply Ability
Supply Ability:
1000 Set/Sets per Month 100w Co2 laser cutting machine for plastic sheet card leather wo
Packaging & Delivery
Packaging Details
100w Co2 laser cutting machine for plastic sheet card leather wood felt clothes 6090

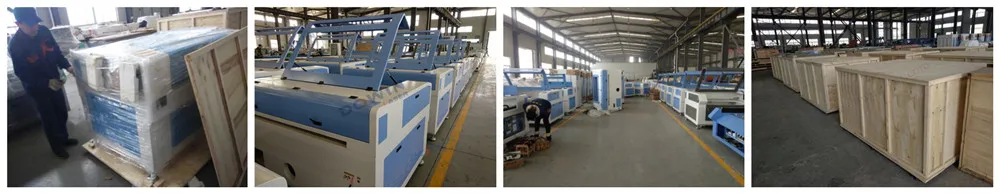

wooden box
Port
Qingdao, Beijing , Tianjin, Shanghai, other
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description

6090 100w Co2 laser cutting machine for plastic sheet card leather wood felt clothes.

Technical Parameters
ModelDW-6090
Processing area600*900mm
Laser tube80W(Option100W)
Engraving speed0-60000mm/min
Cutting speed0-10000mm/min
Cutting thickness20mm Acrylic
Minimum  characterLetter 1.0 x 1.0mm
Support graphic formatAI, PLT,BMP, DST, DWG, DXF,
Resolution ratio<0.01mm
Location precision<0.01mm
Power supply220V±10% /50HZ , 110V±10%//60HZ
Operating temperature5%-95% Free of condensed water
Laser tube's life10000 hours
InterfaceUSB
Control systemRUIDA
Packing Weight240KG
Packing size165*125*147cm
Delivery Time7 Working days after payment received

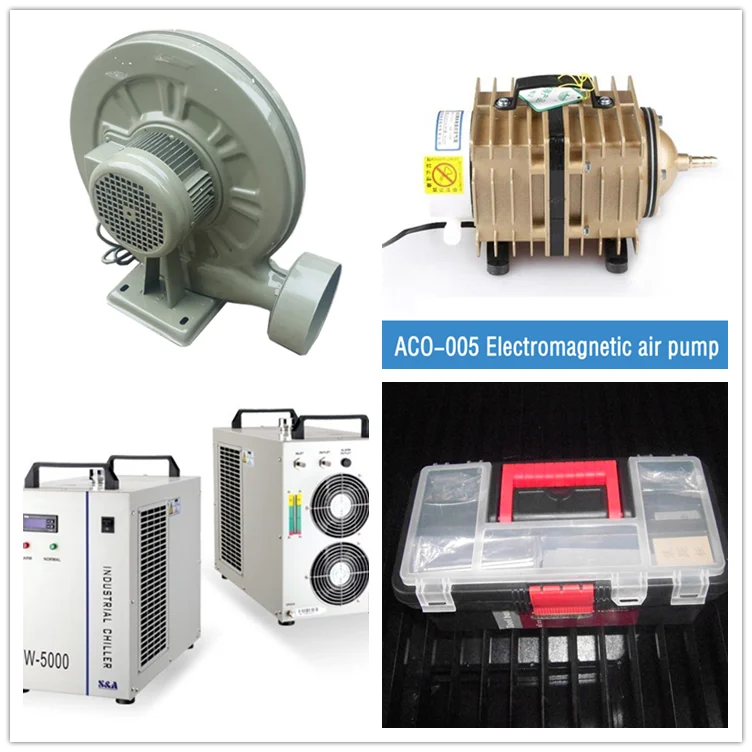

Honey or knife table
Industry Chiller
Exhaust fan & air pump
Product Description

6090 100w Co2 laser cutting machine for plastic sheet card leather wood felt clothes.

1) Red dot positioning Synchronize with the laser, which make the operation more convenient.
2) Ensure the accuracy higher than similar models on the market.
3) Knives and cellular dual cutting platform can meet the cut requirement of a variety of products.
4) DSP control system and Ruida board can ensure the engraving and cutting task completed quickly at one time.
5) Make the processing of various thickness material more convenient.
6) Wide range of applications: Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry, Printing Industry.

--Sketch map of Optical system

The laser beam is from laser tube, then reflecting mirrors and focus lens,

as following

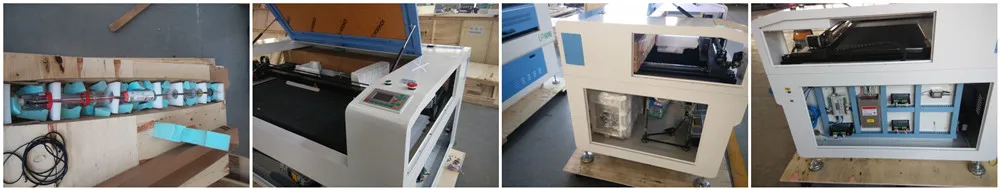

Detailed Images

100w Co2 laser cutting machine for plastic sheet card leather wood felt clothes 6090.

Focus on laser engraving machine more than 10 years ,we have our own factory ,welcome to visit at any time.

# Voltage: 110v-220v/50~60hz

#  Leadshine M860 57 step motor and Leadshine driver

# Beijing RECI 80W CO2 TUBE (Optional 100W and 130W)

# Original Ruida 6442s control system

# Honeycomb or Knife table

# Original square rails imported from Taiwan

# Water protection system

# Ruida wifi controler

# Red light point

# Water chiller CW3000 CW5000 CW-5200

# Big power Air pump and 550W exhaust fan



Application & Sample

It is widely used in electronic, craft and gift, garment, leather, toy, computerized embroidery, packing and printing, shoe making, furniture, advertising industries ect.

100w Co2 laser cutting machine for plastic sheet card leather wood felt clothes 6090 Application:

1) Acrylic engraving and cutting

2) Wood/MDF engraving and cutting

3) Leather engraving and cutting

4)Paper engraving and cutting

5) Rubber sheet engraving and cutting

6) Double color board & coated board engraving

7) Marble and stone engraving

8) Cylinder engraving

9)Thin metal board cutting

10)and other non-metal materials.

Please refer to those info to choose correct laser power or tell us what materails and thickness you want to cut.
Company Information

WE DOWIN LASER

Dowin signs tech Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting machine, laser engraving machine and laser marking machine. All series machines are with One-three year's warranty. Also our service support various languages, like English, Spanish, Russian,and so on. Meanwhile, customized equipment are available according to different requirements.Within the laser engraving and cutting field, Dowinlaser has passed CE and FDA qualifications.Which assures high-efficient production and products' reliability. After years of hard work, Dowinlaser's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc...



What we offer :

1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
*Within 7 days since your local customs clearance: if the machine's any parts has any problems,we will change it free.
*Exceed 7 days since your local customs clearance but within warranty period if the machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
*Exceed one year warranty period if the machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
*We offer 24 hours technical support by call, email.
*Our technician can give you remote guide online(Skype / MSN/What's app/viber/Tel/Etc) if you have any question.
*Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
*We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
3.Dowin Signs Tech Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.



What we believe :

Clients are always right.When you are finished changing ...you are finished.

Quality is our paramount mission that underpinning the lifeline of the company, and it is the most important factor to maintain long-term business relationships with customers. Special attention is paid to the quality of every unit of Dowin laser cutting machine. Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser power meter. The laser interferometer and laser collimator are used through the mechanical assembling process. In the laser assembling process, the laser power meter and optical microscope are adopted.

FAQ

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2:How's the payment?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU),also accept alibaba trade insurance order



Q3: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q4:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q5:If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
