Good quality fiber laser marking machine portable laser marking machine for sale

FOB Reference Price:Get Latest Price
US $2,600-3,700 / Sets | 1 Set/Sets Good quality fiber laser marking machine/portable laser marking (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Marking
Laser Type:
Fiber Laser
Power(W):
20W/30W/50W
Working Accuracy:
0.001mm
Graphic Format Supported:
AI, BMP, DST, DXF, PLT, JPG, TIF, etc
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD Software
Place of Origin:
Henan, China (Mainland)
Brand Name:
Dowin
Model Number:
DW-20F1
Certification:
CCC, CE, GS, ISO, SGS, FDA
Product name:
Fiber laser marking machine
Laser source:
Raycus Laser Source
Marking Speed:
7000mm/second
Warranty:
3 Years
Laser wavelength:
1064nm
Laser Power:
20W/30W/50W
Applicable Material:
Metal marking
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month Good quality fiber laser marking machine/portable laser marking
Packaging & Delivery
Packaging Details
Good quality fiber laser marking machine/portable laser marking machine for sale
wood box
Port
Shanghai,Qingdao,Beijing,Tianjin.other
Lead Time :
3 days after deposit
Video Description
Product Description

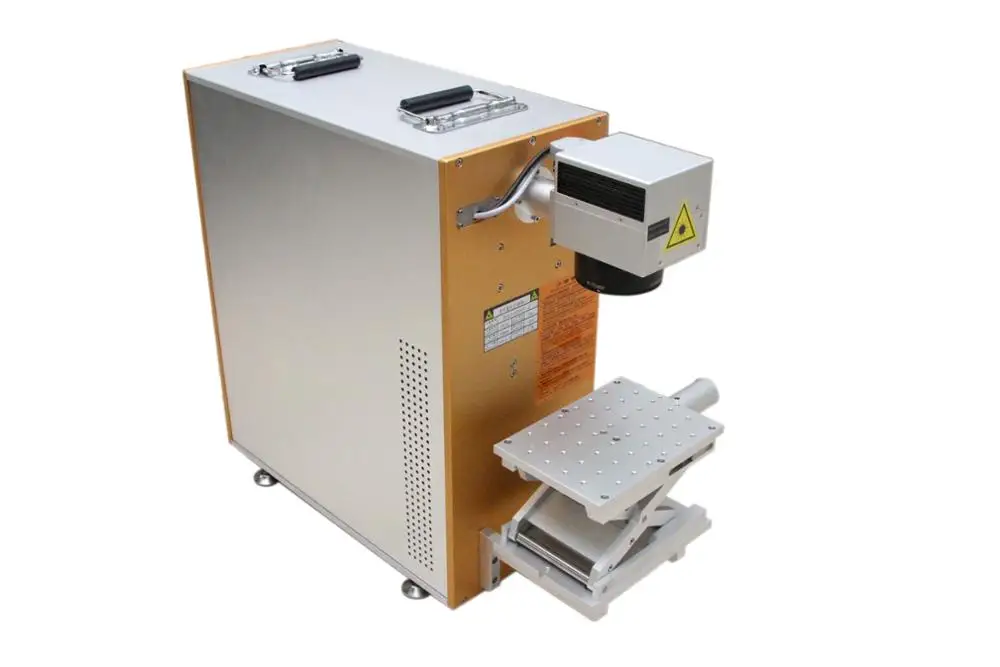

Good quality fiber laser marking machine/portable laser marking machine for sale
FAQ



1. Featured with the integrated design, the fiber laser marking system is of compact size, low consumption, long life-span, high efficiency, free from maintenance, convenient to be installed and taken away.

2. The whole machine is of easy operation, and one key to control the power on and power off.

3. With strong extensive ability, the equipment can be available in all kinds of working environment, especially suitable for the unique processing and operation, convenient to be matched with other automatic equipments.

4. With superior laser beam, and precise light spot, it is no need of consumable items.

5. The scanning galvanometer is imported with original packaging, and with compact size and fast speed, it is of precise location, its software operation is simple and function is strong.

Application

It is capable to mark the metal materials and partial non-metal materials, especially suitable for some fields required more precise and higher smoothness.

The machine is widely used in the electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelers accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc.

Specification

Working area

110mm*110mm 200*200mm 300*300mm

Power

20W 30W 50W

Wavelength

1064nm

Repetitive frequency

20kHz-100kHz

Pulse width

<100ns

Peak power

25-80KW/10KHz

Marking speed

600-1000 character/second

Mini line width

0.02mm

Location accuracy

<10urad

marking area

50-500mm

Power supply

220V/50-60Hz

Power consumption

800W

Cooling mode

Air cooling

Scanning galvo head

 from Galvotech company

F-θ focus lens head

F =160mm from Singapore

Laser power supply

30A

Scanner

Sino-Galvo (Beijing) model SG7110 galvo scanner

Laser generator

Raycus From Wuhan ,offer 3 years warranty

Software

Genuine EZCAD (Beijing JCZ)



Good quality fiber laser marking machine/portable laser marking machine for sale

Details: whole aluminum frame

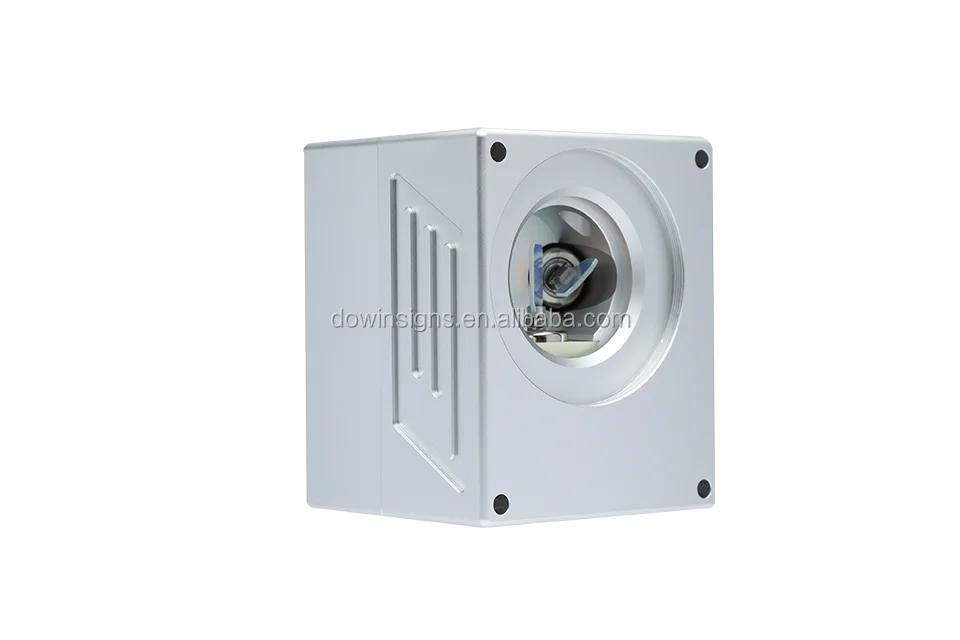

The model SG7110 galvo scanner has the good running stability, high positioning accuracy, fast marking speed,

strong anti-interference ability, the overall performance has reached the international leading level in this field.



Sino Galvo Scanner.png

Good quality fiber laser marking machine/portable laser marking machine for sale

Features

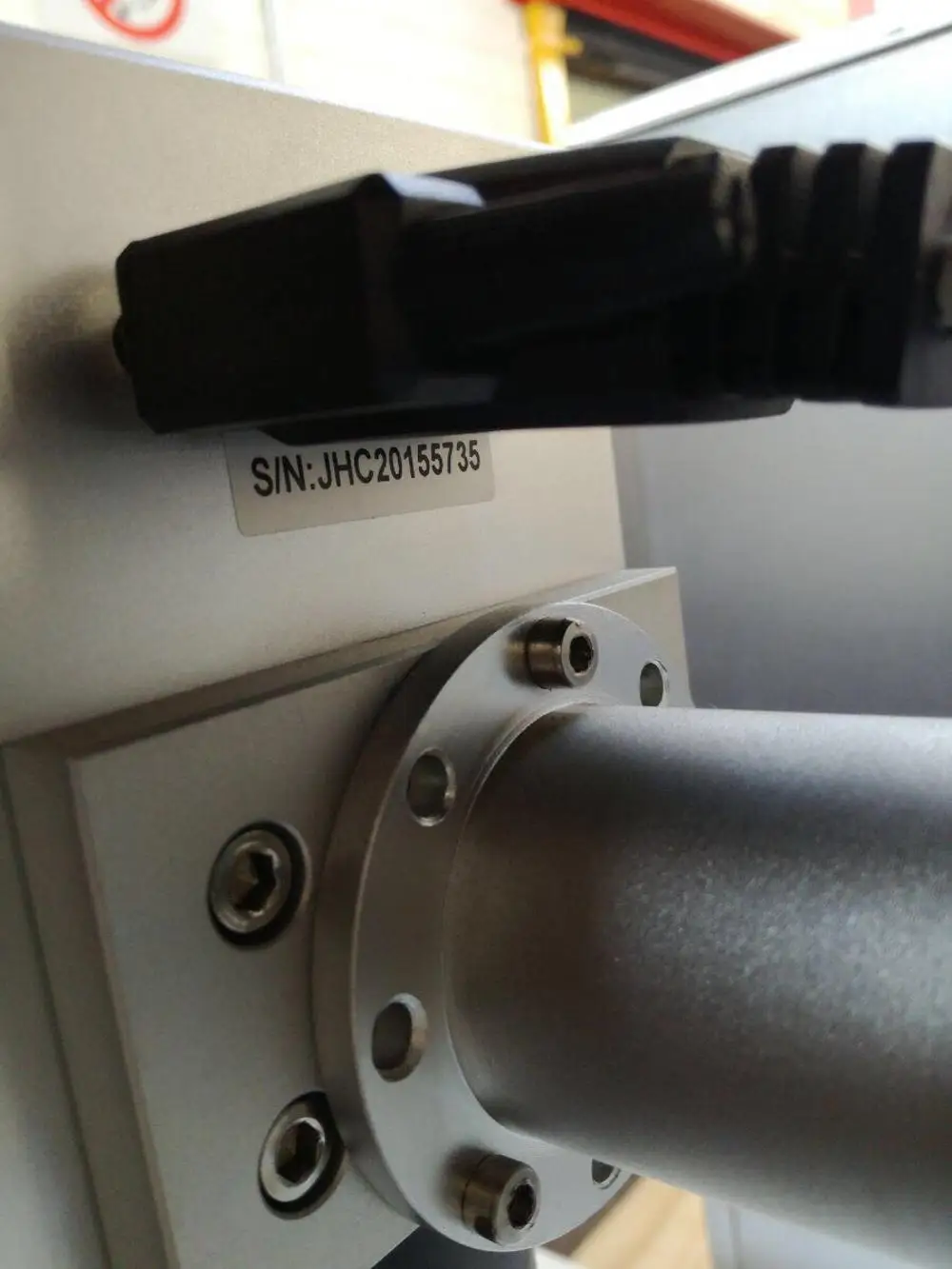

Use Raycus Fiber laser source ,offer three years warranty

Raycus fiber laser source.jpg

Good quality fiber laser marking machine/portable laser marking machine for sale

factory and Packing details

Fiber laser marking (35).JPG





Samples of Fiber laser marking machine
