Hot Sale china portable 20W 30W 50W fiber laser marking machine for metal price

FOB Reference Price:Get Latest Price
US $2,600-3,700 / Sets | 1 Set/Sets (Min. Order)
Power(W):
20W/30W/50W
Model Number:
DW-20F1
Customization:
Customized logo (Min. Order: 3 Sets)
Customized packaging (Min. Order: 3 Sets)

More

Graphic customization (Min. Order: 3 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Marking
Laser Type:
Fiber Laser
Working Accuracy:
0.001mm
Graphic Format Supported:
AI, BMP, DST, DXF, PLT, JPG, TIF, etc
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD Software
Place of Origin:
Henan, China (Mainland)
Brand Name:
Dowin
Certification:
CCC, CE, GS, ISO, SGS, FDA
Warranty:
3 years, 3 Years
After-sales Service Provided:
Online support, Free spare parts, Video technical support, Engineers available to service machinery overseas
Product name:
Hot Sale 20W 30W 50W fiber laser marking machine for metal price
Laser source:
Raycus Laser Source
Marking Speed:
7000mm/second
Laser wavelength:
1064nm
Laser Power:
20W/30W/50W
Applicable Material:
Metal marking
Keywords:
fiber laser machine
Supply Ability
Supply Ability:
500 Set/Sets per Month Hot Sale 20W 30W 50W fiber laser marking machine for metal pric
Packaging & Delivery
Packaging Details
Hot Sale 20W 30W 50W fiber laser marking machine for metal price
wood box
Port
Shanghai,Qingdao,Beijing,Tianjin.other
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(day) 7 To be negotiated
Video Description
Product Description

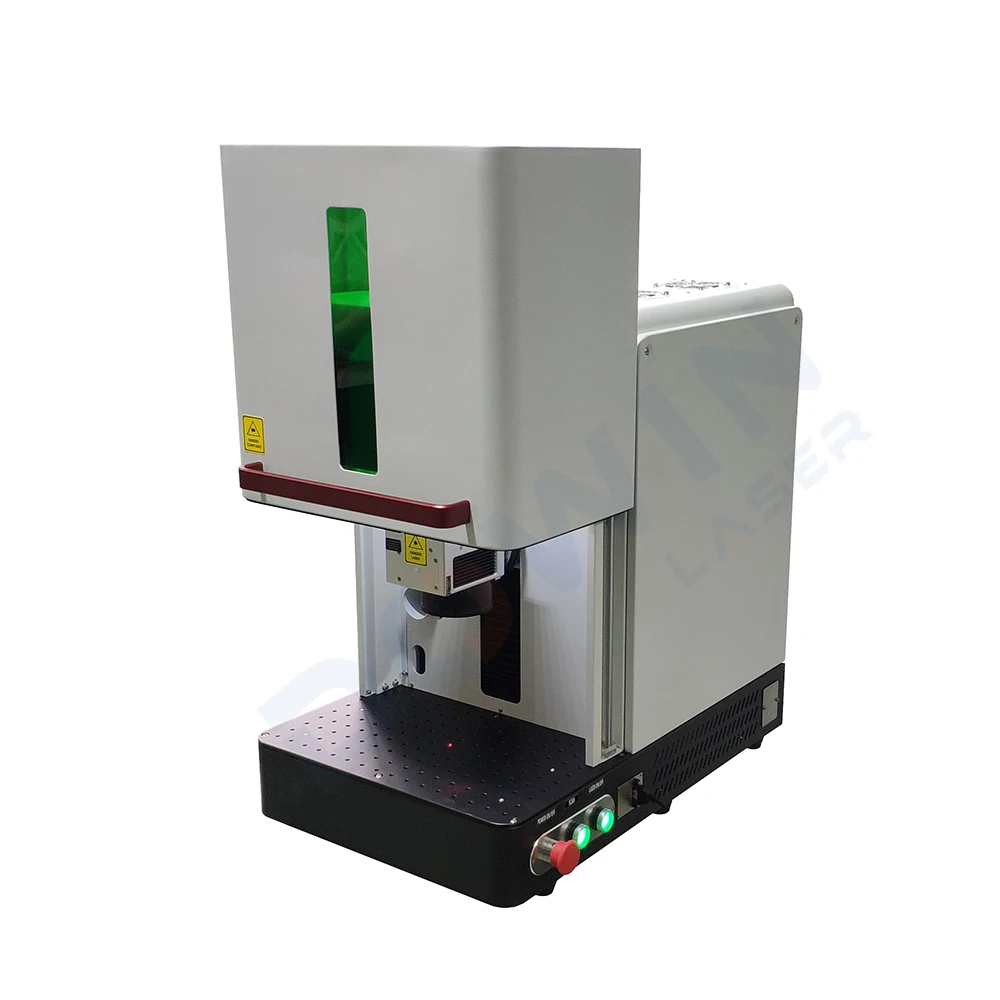

 Hot Sale china portable 20W 30W 50W fiber laser marking machine for metal price.

1)Featured with the integrated design, the fiber laser marking system is of compact size, low consumption, long life-span, high efficiency, free from maintenance, convenient to be installed and taken away.

2)The whole machine is of easy operation, and one key to control the power on and power off.
3)With strong extensive ability, the equipment can be available in all kinds of working environment, especially suitable for the unique processing and operation, convenient to be matched with other automatic equipments.
4)With superior laser beam, and precise light spot, it is no need of consumable items.
5)he scanning galvanometer is imported with original packaging, and with compact size and fast speed, it is of precise location, its software operation is simple and function is strong.

Specification
Model
DW-20F1
marking area
50-500mm
Working area
110mm*110mm
Power supply
220V/50-60Hz
Power
20W (optional 30w 50w)
Power consumption
800W
Wavelength
1064nm
Cooling mode
Air cooling
Repetitive frequency
20kHz-100kHz
Scanning galvo head
from Galvotech company
Pulse width
<100ns
F-θ focus lens head
F =160mm from Singapore
Peak power
25-80KW/10KHz
Laser power supply
30A
Marking speed
600-1000 character/second
Scanner
Sino-Galvo (Beijing) model SG7110 galvo scanner
Mini line width
0.02mm
Laser generator
Raycus From Wuhan ,offer 3 years warranty
Location accuracy
<10urad
Software
Genuine EZCAD (Beijing JCZ)
Packing Size
0.7*0.8*0.9m
Packing Weight
65kg
Detailed Images

Hot Sale china portable 20W 30W 50W fiber laser marking machine for metal detailed images.

1:Laser source
Radio frequency tube laser source with high laser energy,fine laser path,low fault rate.the life time can up 100,000hours

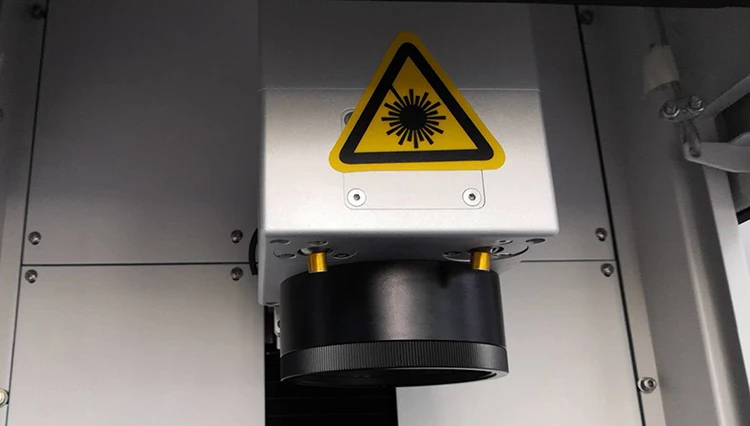

2:High-speed Digital Galvanometer scanning ststem
High speed scanning galvanometer with Germany SCANLAB technology,with fast marking speed,digital signal,high precision.

3:F-Theta Lens
Singapore RONAR-SMITH-theta lens,very fine focusing , 110mm*110mm marking area

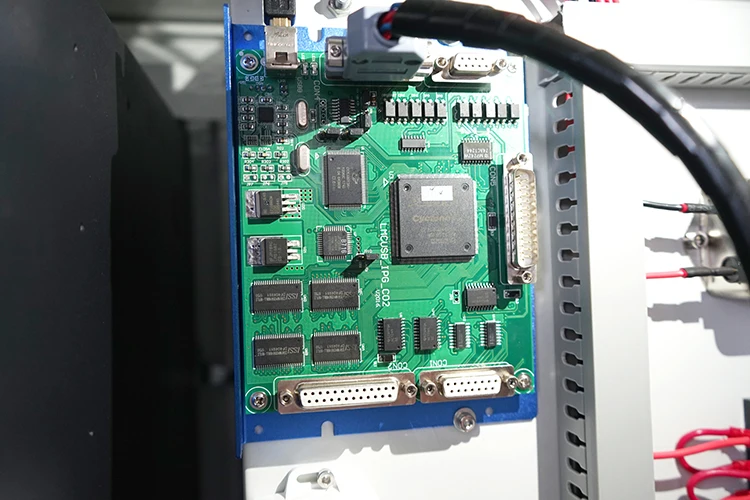

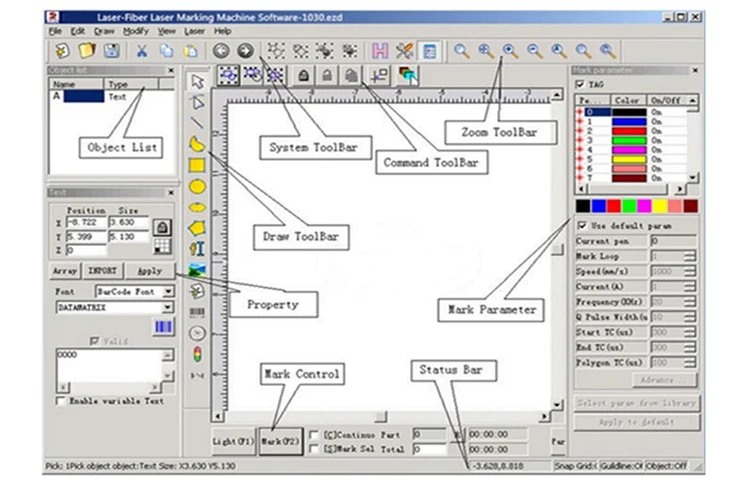

4:Control Board & Control Software
Famous brand original EZCAD Control system with high stability and easy operation,good performance ,support win7,win8,win10.

5:Red Light Indicator
Adopt red light indicator to show the laser path since invisible laser beam.

6:Power Supply
Power supply for galvo head and control board.High efficiency,low working temperature.

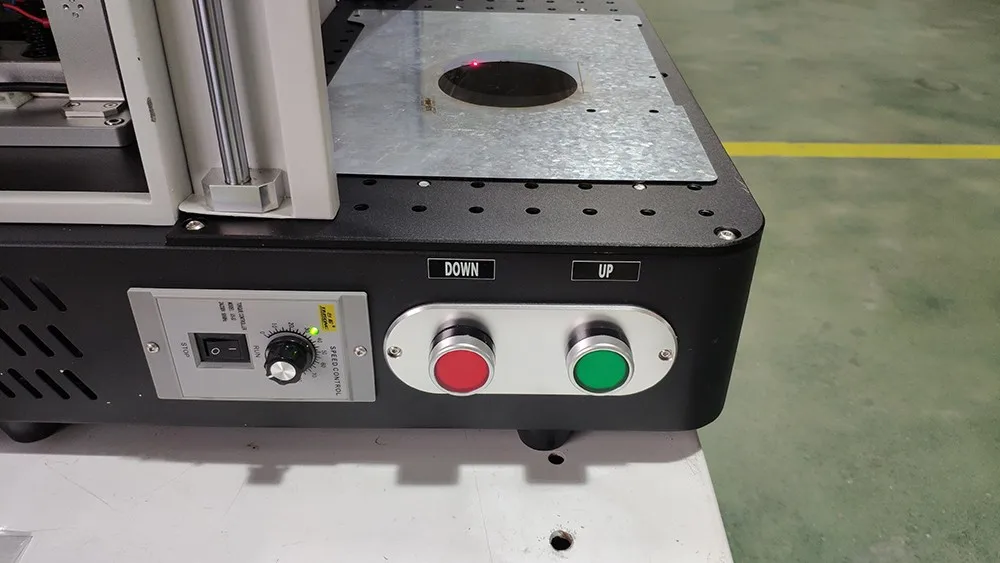

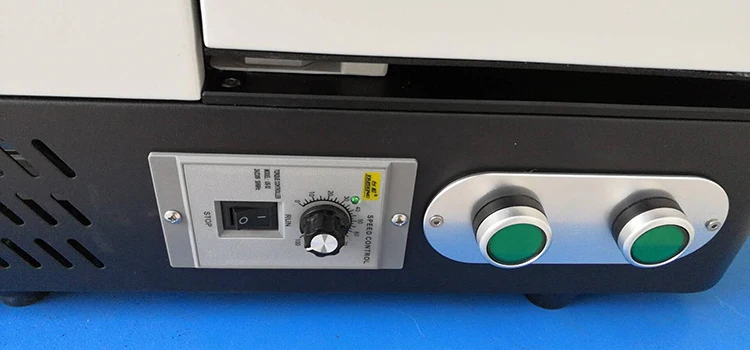

7:Control Button.
Humanized control system,easy to operate,dust proof design.

8:Lifting Handle
To rotate the handle to adjust the height to get focus of laser as per the working piece.it is for 500mm height adjustable.

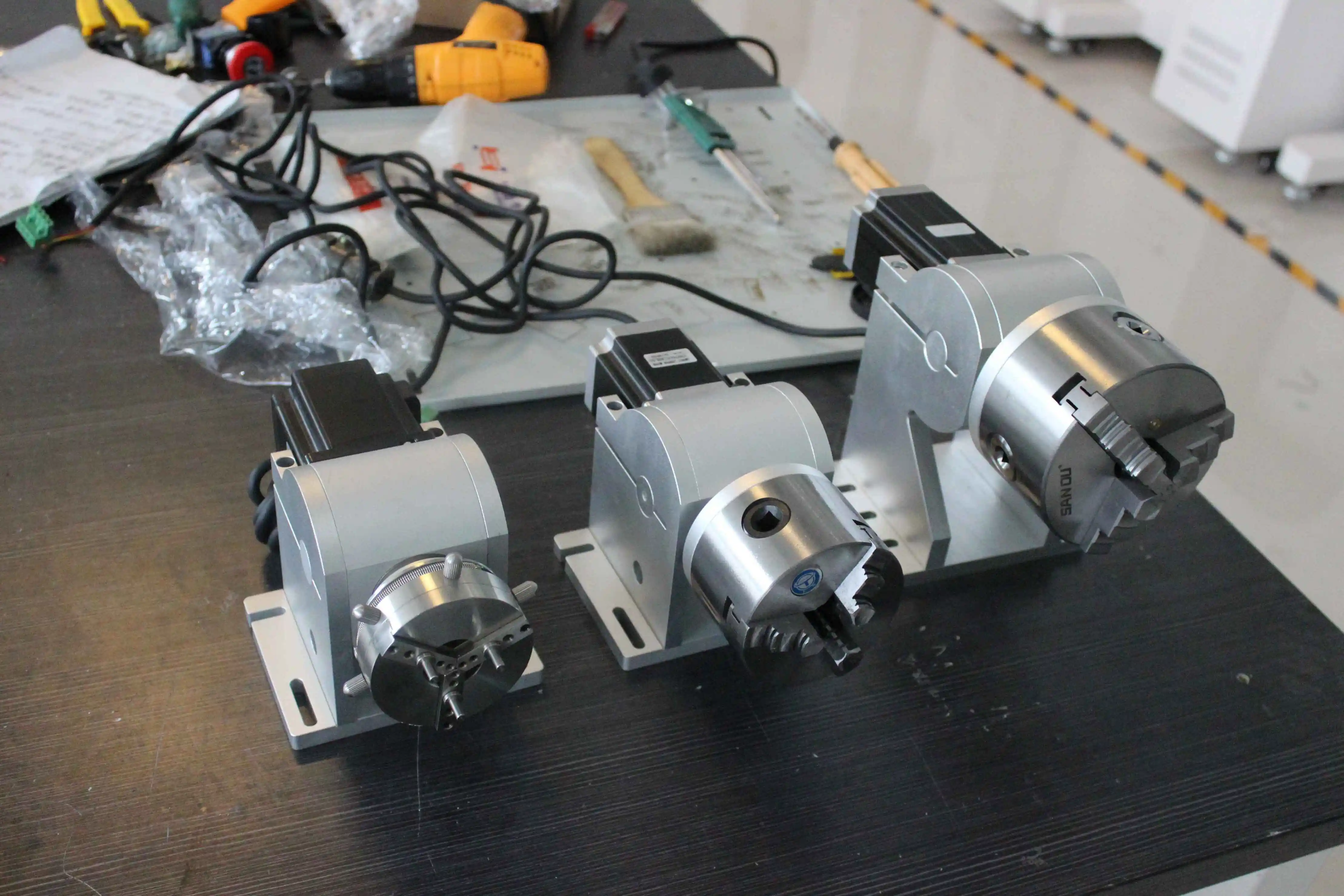

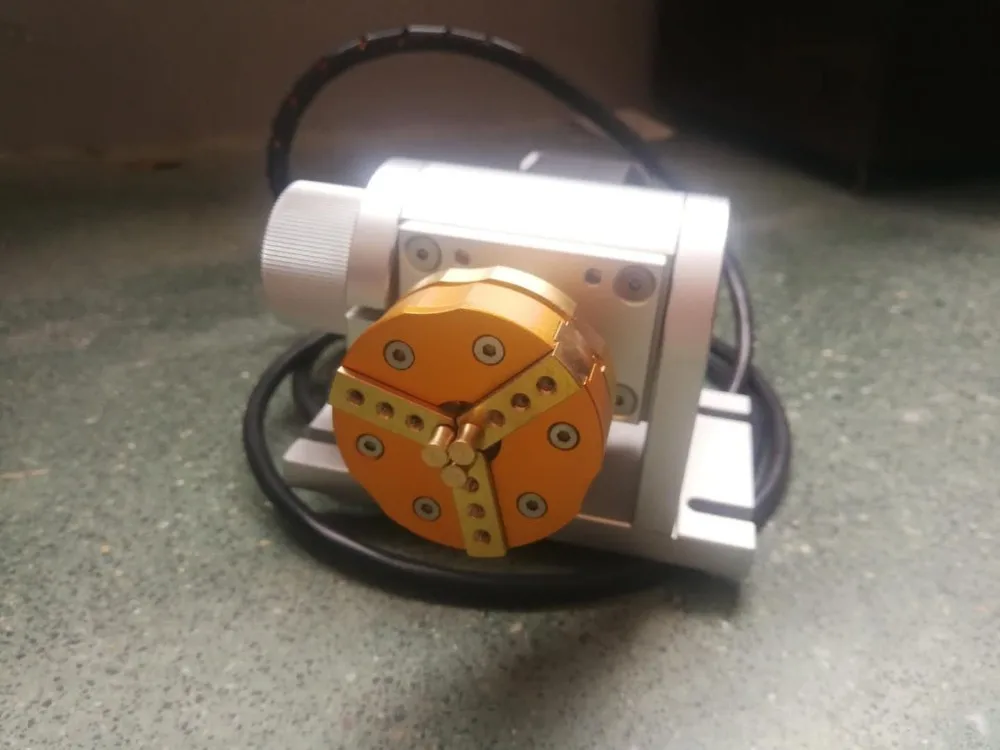

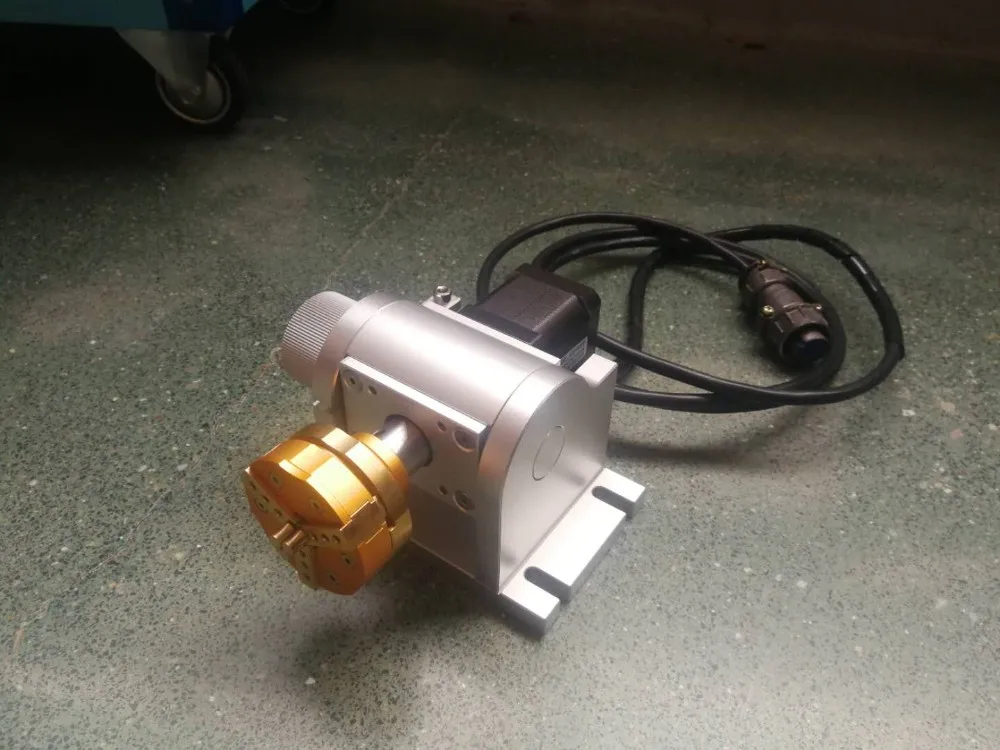

9:Rotary Device(Optional)
For round or arc workpiece marking ,matched with adjustable-speed motor.

Samples

Applicable Materials
Metals and alloys (carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, etc.), rare metal and alloy steel (gold, silver, titanium, etc.) and
some non-metal (plastic, PMMA, etc.), special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy).
Applicable Industries
Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molding, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes.

Packing & Delivery

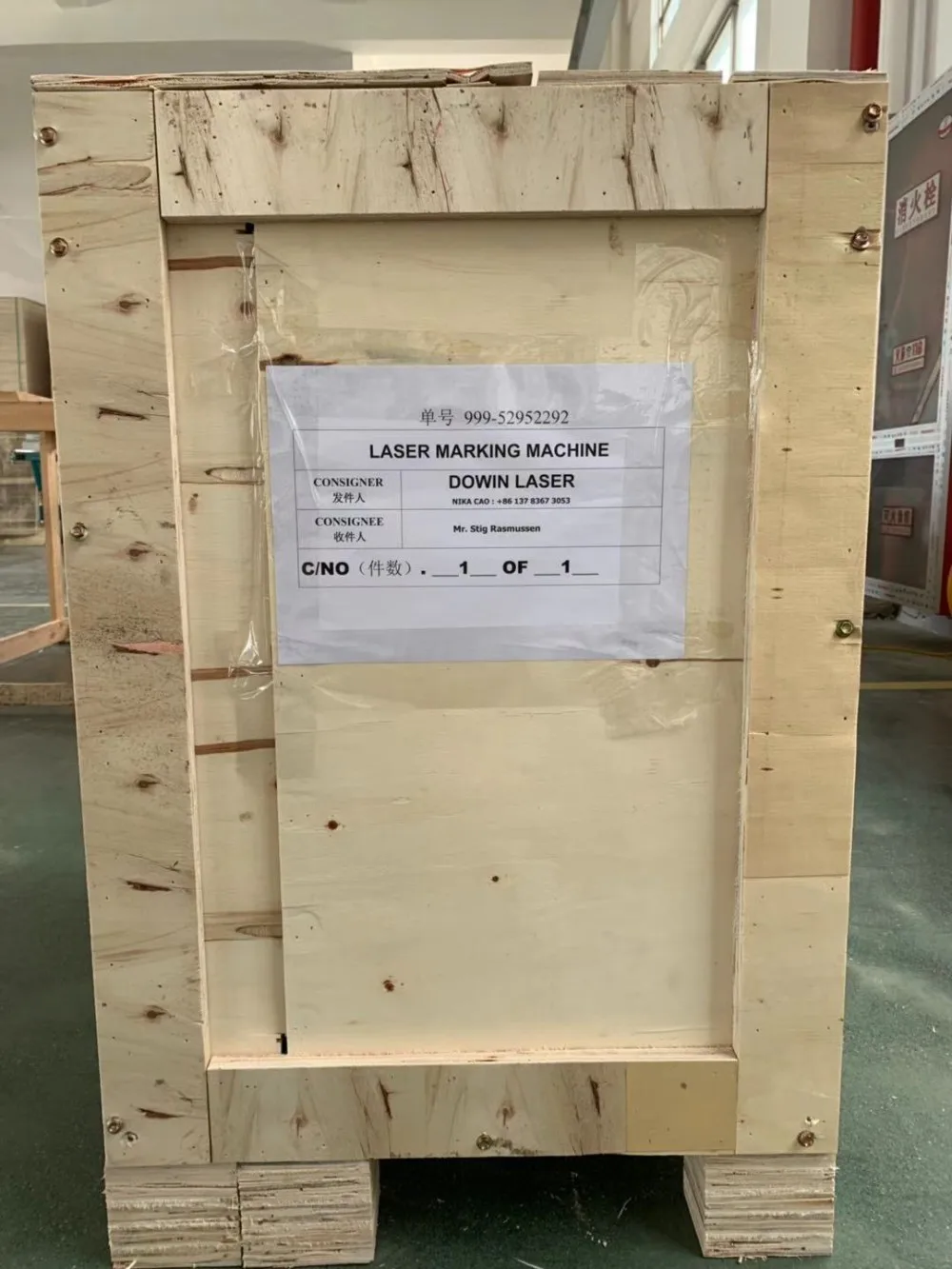

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity.

We can package according to your requests.

Packaging
Size
0. 7m(L) * 0.8m(W) * 0.9m(D)
Weight
65KG



Packaging Details
1)The normal package is wooden box(Size: L*W*H).

2) Pack it according to customers special request.
About Us

Our Service.

❤Guarantee for 1 years.
❤ Maintenance free of charge for 1 years .
❤We will provide the consumable parts at an agency price.
❤24 hours online service, free technical support.
❤Friendly English version manual.
❤Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
❤We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.

Dowin signs tech Co., Ltd.

Specializes in R&D and production of various laser equipment, such as laser cutting machine, engraving machine and marking machine. All series machines are with One-three year's warranty. Also our service support various languages, like English, Spanish, Russian,and so on. Meanwhile, customized equipment are available according to different requirements.Within the laser engraving and cutting field, Dowinlaser has passed CE and FDA qualifications.Which assures high-efficient production and products' reliability. After years of hard work, Dowinlaser's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc.. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional branding, and International suppliers for various industrial solutions.
Quality and credit goes all the way. Dowinlaser, a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

FAQ

Q1: How can I get the best machine for me?

You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?

We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3:What's the guarantee, in case the machine breaks down?

The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q4:How about the documents after shipment?

After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Q5:How long is the delivery time?

For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q6:How's the payment?

Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU)

Q7:Do You Arrange Shipment For The Machines?

Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost.
for FOB or CIF price, we will arrange shipment for you.

Q8:How is the packing?

Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

Save space as much as possible for container loading


Q9:If the machine has problem in my place, how could I do?

We could send free parts to you in warranty period if machines have any problem under "normal use".
